• Automatic Double Column Bandsaw Machines 180 DFA

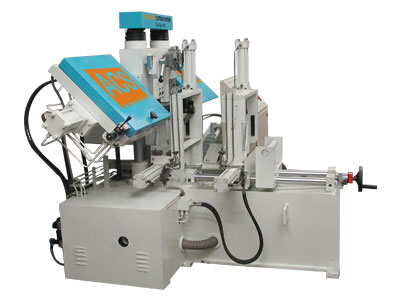

Automatic Doubl Column Bandsaw Machines Acs 180 DFA
Acs 180 DFA
Request a Quote

Model ACS 180 DFA
Round (mm) 180
Flat (mm) 180 x 180
Band Dimension (mm) 3000 x 27 x .9
Cutting Speed m/min 20-100
Saw Motor Power kw/hp 1.5/2
Hydraulic unit power kw/hp .75/1
Coolant pump power kw/hp 12/.16
Length - mm 1500
Width - mm 1050
Height - mm 1250
Single indexing Stroke in mm Applicable for DFA 300
App. Net Weight - kg 1300


We are Manufacturer, Supplier, Exporter of Automatic Double Column Bandsaw Machines 180 DFA from Pune, Maharashtra, India.


Features For Automatic Double Column Bandsaw Machines Acs 180 DFA :
  • Double Acting Hydraulic Cylinder for Main Vice and Shuttle Vice.
  • Infinitely variable Feed Control Valve for Setting the Cutting Rate
  • Automatic height adjustment for saw frame to save idle time.
  • Length setting thru Digital Siko meters
    (0.1mm Least Count)
  • Adjustable Heavy-duty movable blade guide with tungsten carbide wear pads & guide rollers.
  • Automatic Machine OFF, in case of Blade Breakage
  • Auto indexing for shuttle
  • Hydraulic band tension.
  • Step Pulley with V-Belts
  • Rubber Bellows for Column Protection.
  • Ergonomically designed Electrical Control Panel.
  • Chain drive with gearbox driven rotating wire brush
  • Grounded and Hard chrome plated Double Columns

Standard Accessories
  • Friction type rotating cleaning wire brush
  • Positive Manual Blade Tensioning
  • Hydraulic full stroke clamping
  • Step Pulley with V Belt
  • Coolant tank
  • Tungsten Carbide face guides with ball bearings

Optional Accessories
  • Hydraulic bundle cutting attachment
  • Electrically Driven Swarf Conveyor
  • Lubrication system by hand operated pump for main columns
  • A.C. frequency control drive for infinite variation of band speed thru control panel
  • Powered wire brush unit
  • Blade Tension Meter for periodic checking of blade tension, optimizing tool life
  • Length setting thru SIKO Meter & Lead screw arrangement
  • Micromist coolant arrangement
  • Roller support stand one meter long with vertical guide rolls
